Explosion proof optical gas imaging gimbal

  • Spectral camera combined with AI multimodal fusion gas leak detection technology.
  • Integrating technologies such as artificial intelligence, cloud computing, and big data to provide intelligent leak alerts.
  • Real time acquisition of detection results, graded gas leakage alarms, and second level alarms.
  • Remote detection of multiple gas leaks, fast traceability of leak points.
  • Adopting a refrigerated medium wave infrared detector, with high sensitivity and accuracy, and small errors.
  • Flexible support for scheduled and real-time detection, vehicle installation and fixed pole installation.

Product Parameters

  • System function
    Remote detection of gas leaks, including intelligent identification of leaks, tracing of leak points, assessment of leak concentrations, and identification of leak images
    Detector Type
    Superlattice (T2SL) cooled infrared focal plane detector, 320 * 256 pixels
    Spectral range
    3.2μm-3.5μm
    Optical performance
    Medium wave infrared lens, F1.2， Electronic focal length
    Detection range
    20-1000m
    Thermal Imaging
    On site temperature measurement, temperature measurement range:-20～350℃
    visible light camera
    32x optical zoom, over 2 million pixels
    Pan tilt rotation angle
    0°～360° (horizontal), -90°～90°(vertical)
    Pan tilt rotation speed
    0°～40°/s(horizontal), 0°～40°/s (vertical)
    Whole machine weight
    ≤50KG
    System Voltage
    DC24V
    Operation temperature
    -30～60℃
    Network
    Ethernet
    IP grade
    IP66
    ATEX
    Ex d IIC T6 Gb/Ex tD A21 IP66 T80℃

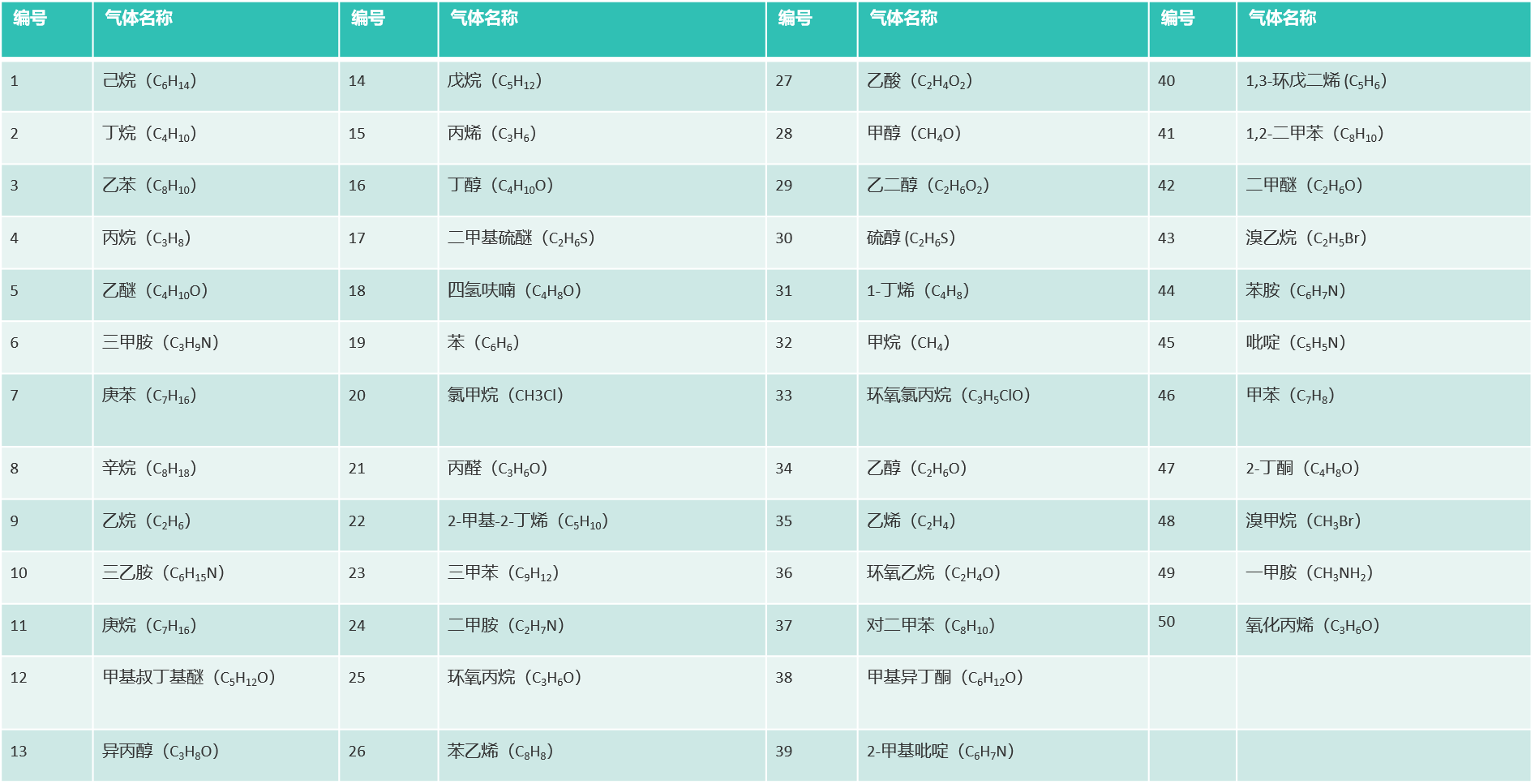

Detectable Gas

Detection Effect

Benzene leak detection live action - visible light video&leak detection video

Camera raw video
