Hanging Robot

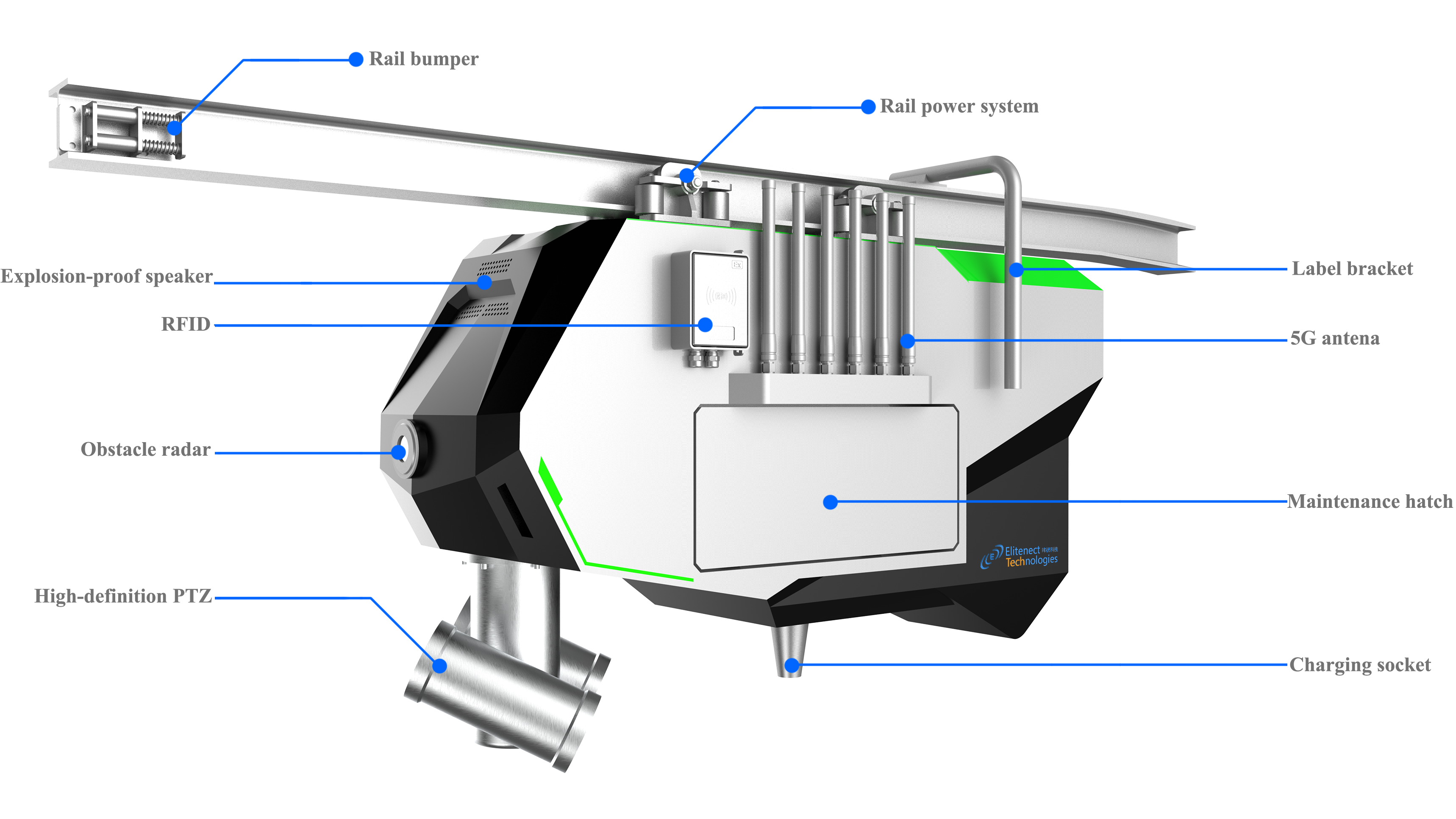

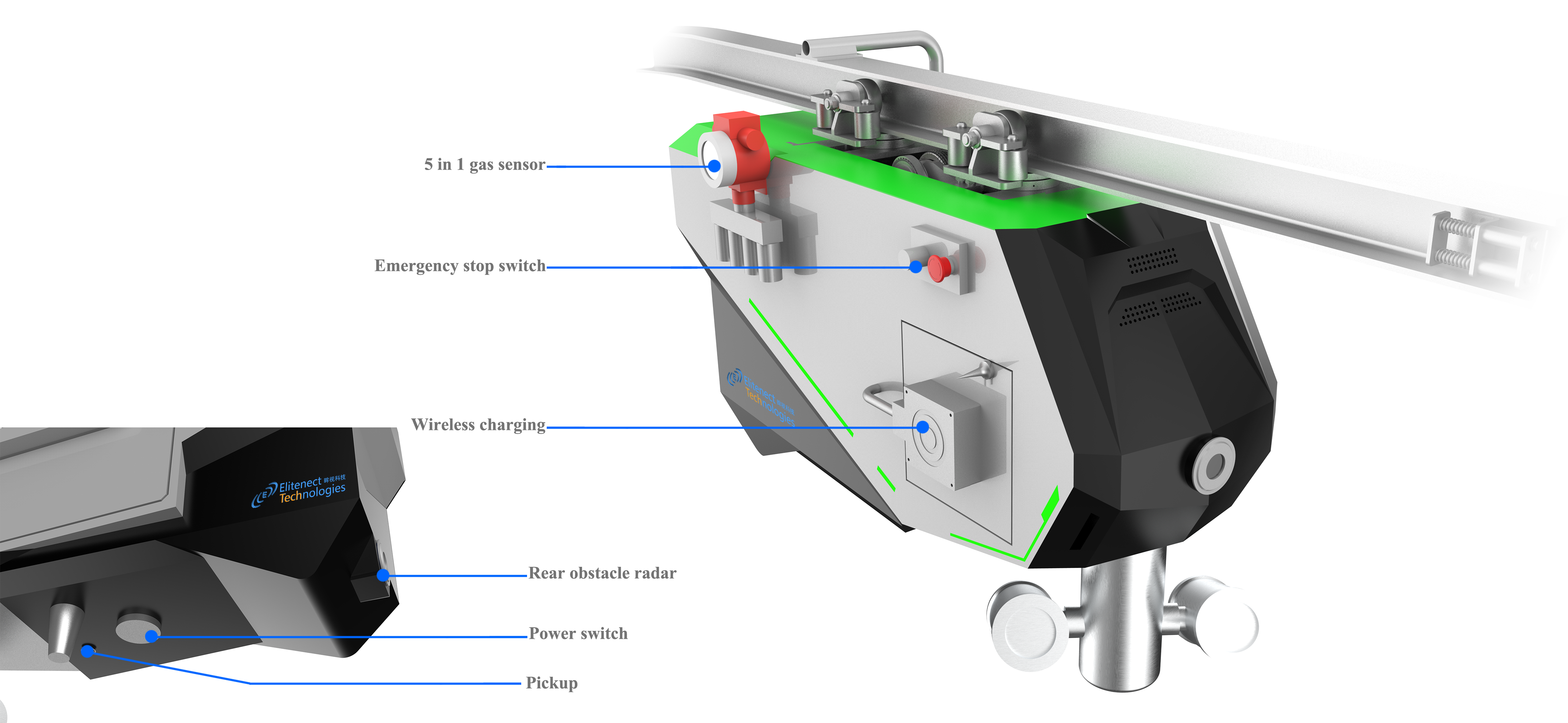

  • Integrate the hardware architecture and sensing modules of the host, including dual view gimbal, infrared thermal imaging, and environmental sensors.
  • Stable operation, safe and reliable, and innovative design. Realize a lean intelligent management mode for unmanned duty in indoor scenarios such as distribution rooms and computer rooms.

Product Parameters

  • Basic Parameters
    Chassis weight
    80kg
    Explosion proof grade
    ⅡCT6
    Ambient Temperature
    -10℃~50℃
    Working humidity
    5～95%，no condensation
    External dimensions
    736 * 430 * 652mm
  • Motion performance
    Moving distance
    Fully charged, continuous operation in horizontal tunnels≥7km
    Speed
    Maximum moving speed: 1m/s, adjustable speed
    Gradeability
    ≤30°
    Turning radius
    0.5M，need to turn at a lower speed
  • Battery Performance
    Charging method
    Automatic charging + manual charging
    Battery capacity
    48V 30AH
    Charging time
    3h
    Endurance
    5h

Application Scenarios

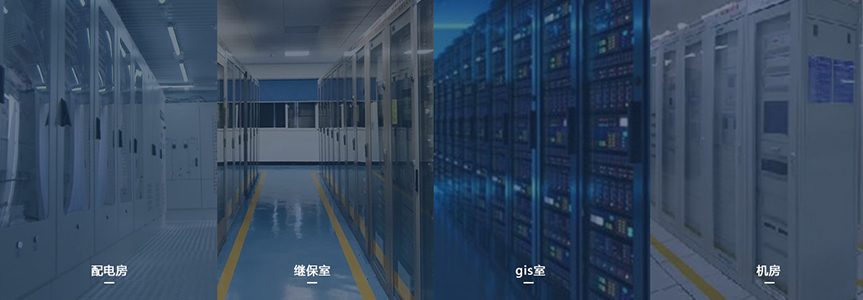

Can be applied to scenarios such as data centers/computer rooms, power distribution rooms, and urban utility tunnels.

Innovation, efficiency, and openness
