Four Wheel Independent Steering Inspection Robot

  • Four wheel independent steering drive with shock absorption, ample power.
  • Equipped with an "elitenect robot positioning and navigation system".
  • Strong obstacle crossing ability, able to flexibly avoid obstacles and avoid road collapses or holes, potholes, etc., adapting to various complex road conditions.
  • Equipped with a lifting rod, the lifting range is 1054-1634mm.

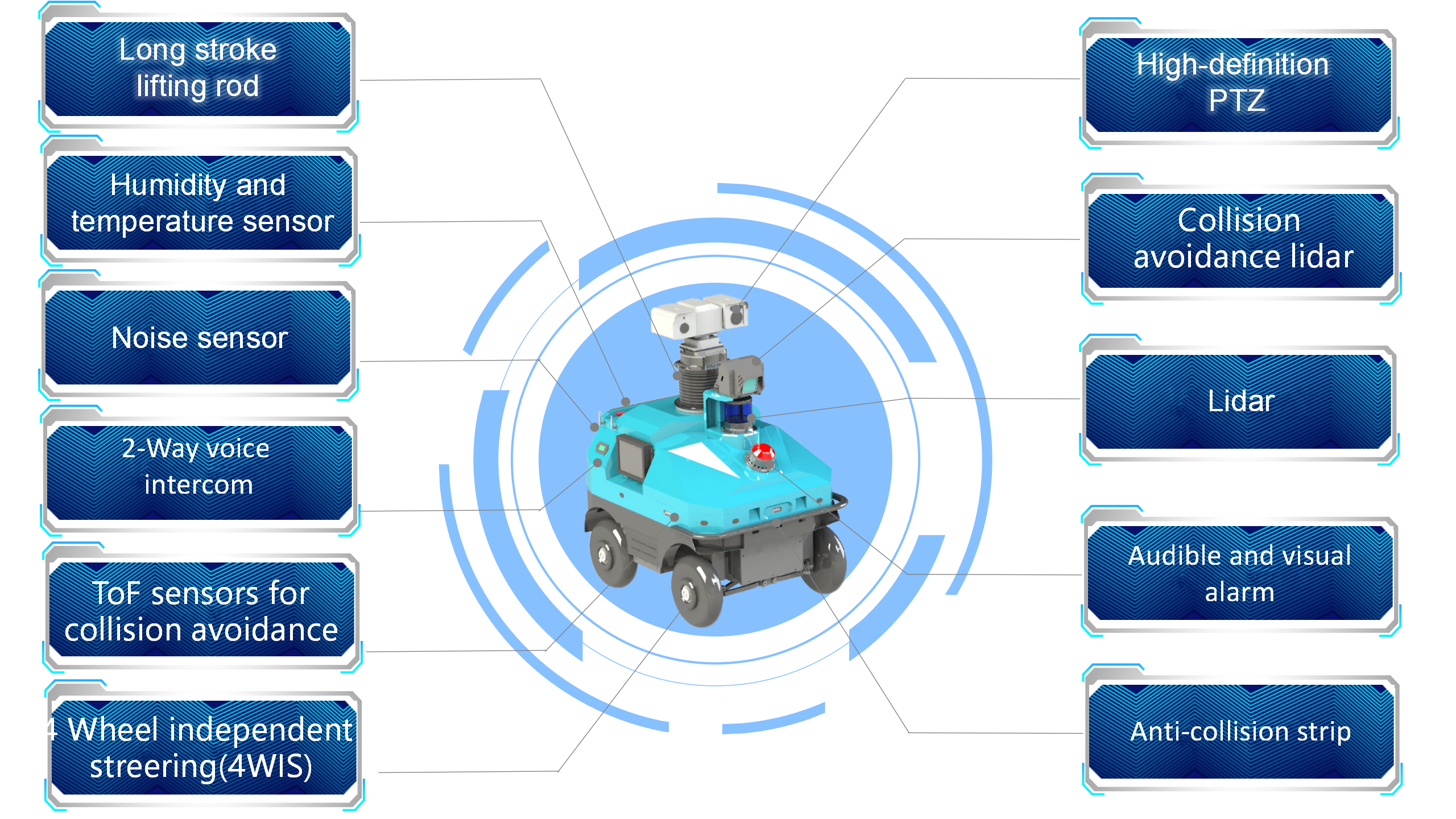

  • Hardware resources: ultrasound, LiDAR, depth camera, visible light camera, thermal imager, temperature and humidity sensor, noise sensor, etc.
  • Support multiple modes such as automatic inspection and remote control functions.

Product Parameters

Standard Hardware High definition binocular gimbal Obstacle avoidance radar laser radar Audible and visual alarm Bilateral voice intercom Temperature and humidity sensor Noise sensor TOF Obstacle avoidance Anti-collision strip
Optional Hardware Gas Sensor Flame sensor Smoke detector Large stroke lifting rod Customized accessories for customers
Note: The high-definition binocular gimbal is equipped with a high-definition visible light camera and a thermal infrared camera.

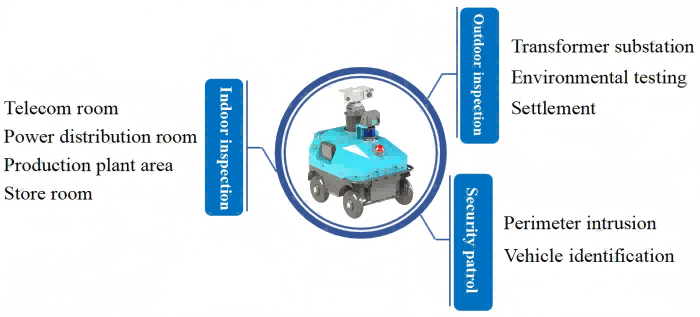

Application Scenarios

Non explosion proof environment, supports the following items for testing: Switch status recognition Leak detection Fire source detection Reading pointer and number tables Equipment temperature detection Safety production environment testing for personnel/vehicles/safety helmets/work clothes, etc Foundation settlement

Innovation, efficiency, and openness
